Swift - 实现图片全屏展示功能（可左右滑动切换图片）
（本文代码已升级至Swift4）
图片的全屏浏览功能在许多 App 中都会用到。比如微信朋友圈里照片默认是显示一张张缩略图，点击后图片会放大至全屏进行查看。本文演示如何实现这个全屏浏览的功能组件。
1，效果图
（1）作为演示，我们首先在页面上创建各个图片的缩略图。

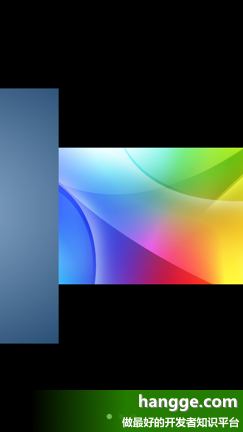

（2）点击任意一张缩略图，则进行全屏展示。如果有多张图片，还可以左右滑动进行切换。同时为了让展示效果更好，这时默认会将导航栏隐藏，点击图片又会显示出导航栏。
（3）全屏浏览时，照片默认会自动缩放以便完整显示。双击则会放大3倍显示。同时使用手势还可以对图片进行拖动、以及放大缩小。
2，组件实现
- 我们创建一个视图控制器（ImagePreviewVC）进行图片全屏展示。点击缩略图时，将图片数组以及默认起始图片索引传入 ImagePreviewVC，并弹出显示。
- ImagePreviewVC 内使用 UICollectionView 来放置图片，这里将 UICollectionView 设为横向滚动并分页，这样就可以左右滑动切换图片。
import UIKit
//图片浏览控制器
class ImagePreviewVC: UIViewController {
//存储图片数组
var images:[String]
//默认显示的图片索引
var index:Int
//用来放置各个图片单元
var collectionView:UICollectionView!
//collectionView的布局
var collectionViewLayout: UICollectionViewFlowLayout!
//页控制器（小圆点）
var pageControl : UIPageControl!
//初始化
init(images:[String], index:Int = 0){
self.images = images
self.index = index
super.init(nibName: nil, bundle: nil)
}
required init?(coder aDecoder: NSCoder) {
fatalError("init(coder:) has not been implemented")
}
//初始化
override func viewDidLoad() {
super.viewDidLoad()
//背景设为黑色
self.view.backgroundColor = UIColor.black
//collectionView尺寸样式设置
collectionViewLayout = UICollectionViewFlowLayout()
collectionViewLayout.minimumLineSpacing = 0
collectionViewLayout.minimumInteritemSpacing = 0
//横向滚动
collectionViewLayout.scrollDirection = .horizontal
//collectionView初始化
collectionView = UICollectionView(frame: self.view.bounds,
collectionViewLayout: collectionViewLayout)
collectionView.backgroundColor = UIColor.black
collectionView.register(ImagePreviewCell.self, forCellWithReuseIdentifier: "cell")
collectionView.delegate = self
collectionView.dataSource = self
collectionView.isPagingEnabled = true
//不自动调整内边距，确保全屏
if #available(iOS 11.0, *) {
collectionView.contentInsetAdjustmentBehavior = .never
} else {
self.automaticallyAdjustsScrollViewInsets = false
}
self.view.addSubview(collectionView)
//将视图滚动到默认图片上
let indexPath = IndexPath(item: index, section: 0)
collectionView.scrollToItem(at: indexPath, at: .left, animated: false)
//设置页控制器
pageControl = UIPageControl()
pageControl.center = CGPoint(x: UIScreen.main.bounds.width/2,
y: UIScreen.main.bounds.height - 20)
pageControl.numberOfPages = images.count
pageControl.isUserInteractionEnabled = false
pageControl.currentPage = index
view.addSubview(self.pageControl)
}
//视图显示时
override func viewWillAppear(_ animated: Bool) {
super.viewWillAppear(animated)
//隐藏导航栏
self.navigationController?.setNavigationBarHidden(true, animated: false)
}
//视图消失时
override func viewWillDisappear(_ animated: Bool) {
super.viewWillDisappear(animated)
//显示导航栏
self.navigationController?.setNavigationBarHidden(false, animated: false)
}
//隐藏状态栏
override var prefersStatusBarHidden: Bool {
return true
}
//将要对子视图布局时调用（横竖屏切换时）
override func viewWillLayoutSubviews() {
super.viewWillLayoutSubviews()
//重新设置collectionView的尺寸
collectionView.frame.size = self.view.bounds.size
collectionView.collectionViewLayout.invalidateLayout()
//将视图滚动到当前图片上
let indexPath = IndexPath(item: self.pageControl.currentPage, section: 0)
collectionView.scrollToItem(at: indexPath, at: .left, animated: false)
//重新设置页控制器的位置
pageControl.center = CGPoint(x: UIScreen.main.bounds.width/2,
y: UIScreen.main.bounds.height - 20)
}
override func didReceiveMemoryWarning() {
super.didReceiveMemoryWarning()
}
}
//ImagePreviewVC的CollectionView相关协议方法实现
extension ImagePreviewVC:UICollectionViewDelegate, UICollectionViewDataSource,
UICollectionViewDelegateFlowLayout{
//collectionView单元格创建
func collectionView(_ collectionView: UICollectionView,
cellForItemAt indexPath: IndexPath)
-> UICollectionViewCell {
let cell = collectionView.dequeueReusableCell(withReuseIdentifier: "cell",
for: indexPath) as! ImagePreviewCell
let image = UIImage(named: self.images[indexPath.row])
cell.imageView.image = image
return cell
}
//collectionView单元格数量
func collectionView(_ collectionView: UICollectionView,
numberOfItemsInSection section: Int) -> Int {
return self.images.count
}
//collectionView单元格尺寸
func collectionView(_ collectionView: UICollectionView,
layout collectionViewLayout: UICollectionViewLayout,
sizeForItemAt indexPath: IndexPath) -> CGSize {
return self.view.bounds.size
}
//collectionView里某个cell将要显示
func collectionView(_ collectionView: UICollectionView,
willDisplay cell: UICollectionViewCell,
forItemAt indexPath: IndexPath) {
if let cell = cell as? ImagePreviewCell{
//由于单元格是复用的，所以要重置内部元素尺寸
cell.resetSize()
}
}
//collectionView里某个cell显示完毕
func collectionView(_ collectionView: UICollectionView,
didEndDisplaying cell: UICollectionViewCell,
forItemAt indexPath: IndexPath) {
//当前显示的单元格
let visibleCell = collectionView.visibleCells[0]
//设置页控制器当前页
self.pageControl.currentPage = collectionView.indexPath(for: visibleCell)!.item
}
}
（2）ImagePreviewCell.swift（图片浏览控制器中使用的单元格）
import UIKit
class ImagePreviewCell: UICollectionViewCell {
//滚动视图
var scrollView:UIScrollView!
//用于显示图片的imageView
var imageView:UIImageView!
override init(frame: CGRect) {
super.init(frame: frame)
//scrollView初始化
scrollView = UIScrollView(frame: self.contentView.bounds)
self.contentView.addSubview(scrollView)
scrollView.delegate = self
//scrollView缩放范围 1~3
scrollView.maximumZoomScale = 3.0
scrollView.minimumZoomScale = 1.0
//imageView初始化
imageView = UIImageView()
imageView.frame = scrollView.bounds
imageView.isUserInteractionEnabled = true
imageView.contentMode = .scaleAspectFit
scrollView.addSubview(imageView)
//单击监听
let tapSingle=UITapGestureRecognizer(target:self,
action:#selector(tapSingleDid))
tapSingle.numberOfTapsRequired = 1
tapSingle.numberOfTouchesRequired = 1
//双击监听
let tapDouble=UITapGestureRecognizer(target:self,
action:#selector(tapDoubleDid(_:)))
tapDouble.numberOfTapsRequired = 2
tapDouble.numberOfTouchesRequired = 1
//声明点击事件需要双击事件检测失败后才会执行
tapSingle.require(toFail: tapDouble)
self.imageView.addGestureRecognizer(tapSingle)
self.imageView.addGestureRecognizer(tapDouble)
}
//重置单元格内元素尺寸
func resetSize(){
//scrollView重置，不缩放
scrollView.frame = self.contentView.bounds
scrollView.zoomScale = 1.0
//imageView重置
if let image = self.imageView.image {
//设置imageView的尺寸确保一屏能显示的下
imageView.frame.size = scaleSize(size: image.size)
//imageView居中
imageView.center = scrollView.center
}
}
//视图布局改变时（横竖屏切换时cell尺寸也会变化）
override func layoutSubviews() {
super.layoutSubviews()
//重置单元格内元素尺寸
resetSize()
}
//获取imageView的缩放尺寸（确保首次显示是可以完整显示整张图片）
func scaleSize(size:CGSize) -> CGSize {
let width = size.width
let height = size.height
let widthRatio = width/UIScreen.main.bounds.width
let heightRatio = height/UIScreen.main.bounds.height
let ratio = max(heightRatio, widthRatio)
return CGSize(width: width/ratio, height: height/ratio)
}
//图片单击事件响应
@objc func tapSingleDid(_ ges:UITapGestureRecognizer){
//显示或隐藏导航栏
if let nav = self.responderViewController()?.navigationController{
nav.setNavigationBarHidden(!nav.isNavigationBarHidden, animated: true)
}
}
//图片双击事件响应
@objc func tapDoubleDid(_ ges:UITapGestureRecognizer){
//隐藏导航栏
if let nav = self.responderViewController()?.navigationController{
nav.setNavigationBarHidden(true, animated: true)
}
//缩放视图（带有动画效果）
UIView.animate(withDuration: 0.5, animations: {
//如果当前不缩放，则放大到3倍。否则就还原
if self.scrollView.zoomScale == 1.0 {
self.scrollView.zoomScale = 3.0
}else{
self.scrollView.zoomScale = 1.0
}
})
}
//查找所在的ViewController
func responderViewController() -> UIViewController? {
for view in sequence(first: self.superview, next: { $0?.superview }) {
if let responder = view?.next {
if responder.isKind(of: UIViewController.self){
return responder as? UIViewController
}
}
}
return nil
}
required init?(coder aDecoder: NSCoder) {
super.init(coder:aDecoder)
}
}
//ImagePreviewCell的UIScrollViewDelegate代理实现
extension ImagePreviewCell:UIScrollViewDelegate{
//缩放视图
func viewForZooming(in scrollView: UIScrollView) -> UIView? {
return self.imageView
}
//缩放响应，设置imageView的中心位置
func scrollViewDidZoom(_ scrollView: UIScrollView) {
var centerX = scrollView.center.x
var centerY = scrollView.center.y
centerX = scrollView.contentSize.width > scrollView.frame.size.width ?
scrollView.contentSize.width/2:centerX
centerY = scrollView.contentSize.height > scrollView.frame.size.height ?
scrollView.contentSize.height/2:centerY
print(centerX,centerY)
imageView.center = CGPoint(x: centerX, y: centerY)
}
}
3，使用样例
import UIKit
class ViewController: UIViewController {
let images = ["image1.jpg","image2.jpg","image3.jpg"]
override func viewDidLoad() {
super.viewDidLoad()
//修改导航栏返回按钮文字
let item = UIBarButtonItem(title: "返回", style: .plain, target: self, action: nil)
self.navigationItem.backBarButtonItem = item;
//生成缩略图
for i in 0..<images.count{
//创建ImageView
let imageView = UIImageView()
imageView.frame = CGRect(x:20+i*70, y:80, width:60, height:60)
imageView.tag = i
imageView.contentMode = .scaleAspectFill
imageView.clipsToBounds = true
imageView.image = UIImage(named: images[i])
//设置允许交互（后面要添加点击）
imageView.isUserInteractionEnabled = true
self.view.addSubview(imageView)
//添加单击监听
let tapSingle=UITapGestureRecognizer(target:self,
action:#selector(imageViewTap(_:)))
tapSingle.numberOfTapsRequired = 1
tapSingle.numberOfTouchesRequired = 1
imageView.addGestureRecognizer(tapSingle)
}
}
//缩略图imageView点击
func imageViewTap(_ recognizer:UITapGestureRecognizer){
//图片索引
let index = recognizer.view!.tag
//进入图片全屏展示
let previewVC = ImagePreviewVC(images: images, index: index)
self.navigationController?.pushViewController(previewVC, animated: true)
}
override func didReceiveMemoryWarning() {
super.didReceiveMemoryWarning()
}
}
源码下载：
hangge_1513.zip
功能改进：双击时以点击位置为中心放大图片
上面的样例中，当我们双击放大图片时，无论点击的位置是哪里，总是以图片中心为起点放大3倍。如果想要实现点击哪个部分就放大哪个部分，只需要修改 ImagePreviewCell 中的双击响应事件代码即可。（下面高亮的为修改的部分）
//图片双击事件响应
@objc func tapDoubleDid(_ ges:UITapGestureRecognizer){
//隐藏导航栏
if let nav = self.responderViewController()?.navigationController{
nav.setNavigationBarHidden(true, animated: true)
}
//缩放视图（带有动画效果）
UIView.animate(withDuration: 0.5, animations: {
//如果当前不缩放，则放大到3倍。否则就还原
if self.scrollView.zoomScale == 1.0 {
//以点击的位置为中心，放大3倍
let pointInView = ges.location(in: self.imageView)
let newZoomScale:CGFloat = 3
let scrollViewSize = self.scrollView.bounds.size
let w = scrollViewSize.width / newZoomScale
let h = scrollViewSize.height / newZoomScale
let x = pointInView.x - (w / 2.0)
let y = pointInView.y - (h / 2.0)
let rectToZoomTo = CGRect(x:x, y:y, width:w, height:h)
self.scrollView.zoom(to: rectToZoomTo, animated: true)
}else{
self.scrollView.zoomScale = 1.0
}
})
}
